ISO14001 Circulating Lubrication System 0.4 Mpa 100L/Min For Oil And Gas Industry

Product Categories
CDINDUSTRY(INTERNATIONAL).INC
Contact Now

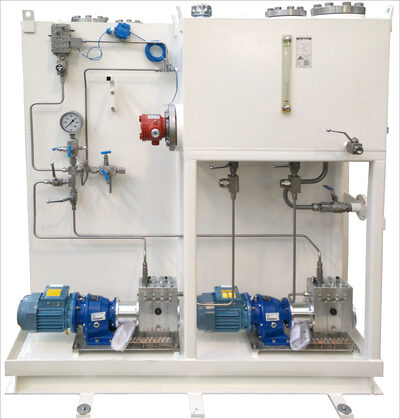

ISO14001 Circulating Lubrication System 0.4 Mpa 100L/Min For Oil And Gas Industry

  • 1
  • 2

Brand Name : Zcer

Model Number : XYZ-63G

Certification : ISO14001/ISO9001

Place of Origin : China

MOQ : 1 unit

Price : 5000-6000 USD/ Unit

Payment Terms : L/C, T/T, D/P, D/A

Supply Ability : Negotiable

Delivery Time : 40-60 working days

Packaging Details : Export Plywood Box

Tank Capacity : 1.6

Quality : Hight Rank, Top Brand, Stable

Feature : High efficiency, Oil, Mechemical Stability

Keywords : lubricating oil, Motor Oil Lubricants, motor oil additive, lubricating oil for oil and gas industry

Cooling water consumption : 9

Motor : IP54 IEC

Contact Now

Energy Saving Compressor Lubrication System XYZ-100G 100L/Min Motor 4KW Heater 24KW

Technical Details

Model XYZ- 6G XYZ-10G XYZ-16G XYZ-25G XYZ-40G XYZ-63G XYZ-100G XYZ-125G XYZ-250G XYZ-400G XYZ-630G XYZ-1000G
Oil supply pressure 0.4 Mpa
Nominal flow(L/min) 6 10 16 25 40 63 100 125 250 400 630 1000
supply temperature 40 ±3℃
Tank Capacity 0.15 0.63 1 1.6 6.3 10 16 25
Filter area 0.05 0.13 0.19 0.4 0.52 0.83 1.31 2.2
Heat transfer area 0.6 3 4 6 24 35 50 80
Cooling water consumption 0.36 0.6 1 1.5 3.6 5.7 9 11.25 12-22.5 20-36 30-56 60-90
Heater Power(kW) 2 12 18 24 1 / 1 /
Voltage(V) 220
Steam Consumption(kg/h) / / / / 100 160 250 400
Motor Type JW7124-B5 Y90S-4-B5 Y100L-4-B5 Y112M-4-B5 Y132S-4 Y132M-4 Y160L-4 Y180L-4
Power (kW) 0.55 1.1 2.2 4 5.5 7.5 15 22
Speed (r/min) 1400 1400 1430 1440 1440 1440 1460 1470
Weight (kg) 308 309 628 629 840 842 1260 1262 3980 5418 8750 12096

ISO14001 Circulating Lubrication System 0.4 Mpa 100L/Min For Oil And Gas Industry

Design concept

Low speed, heavy load design, effectively guarantee the service life of wearing parts, at the same time, low noise and low vibration.


Small pressure ratio design, and accurate control of inlet and outlet pressure and exhaust temperature at all levels, the machine will be forced to stop when the temperature is abnormal during operation, further ensuring the safety of use. The pipeline valve has a large diameter and a low flow rate design; further ensuring performance and safety.

Quality Control

1. Supply Quality Control

2. Production Process Quality Control

3. Finished Product Quality Control

4. Sold-out Product Quality Control
